Blind Flanges
Certified steel products, dependable supply and application-focused support for industrial buyers.

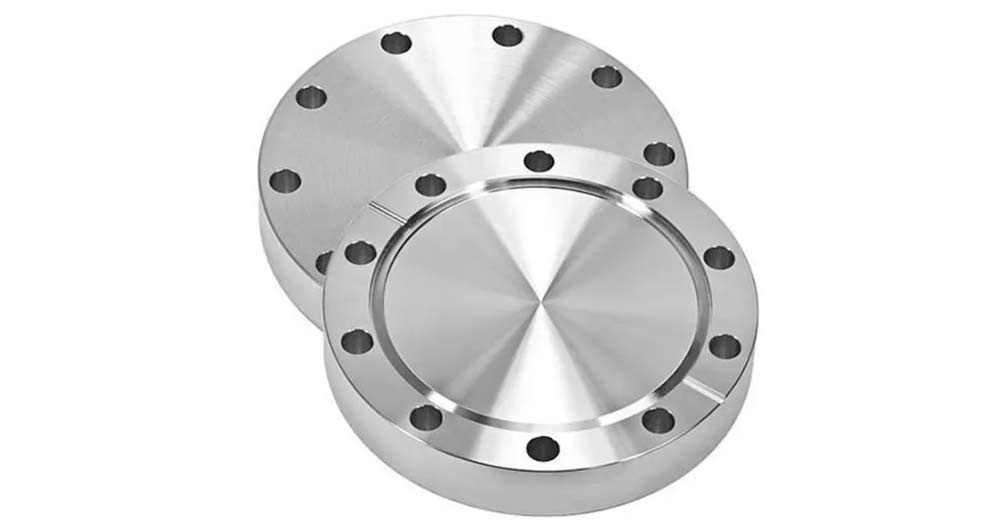

Blind flanges are used to close pipe ends, valves and pressure vessel openings for inspection, isolation and future expansion. They are selected where positive shut-off, pressure holding and access for future maintenance are required. We supply blind flanges with controlled face finish, accurate bolt holes and material grades suitable for corrosive, high-temperature and general industrial service.
Size Range1/2 inch to 48 inch
Wall / Pressure ClassClass
150/300/600/900/1500/2500
TypesRaised Face, Flat Face, RTJ
Blind
StandardsASME B16.5, ASME
B16.47
FinishSerrated, Smooth, Galvanized,
Coated
LengthStandard thickness
Materials Grades
Available in corrosion-resistant, high-temperature and pressure-grade materials for industrial service. Grade selection can be aligned with pressure, temperature, corrosion allowance and client specification.
Stainless Steel 304/304LStainless Steel 316/316LCarbon SteelAlloy
SteelDuplex 2205Super Duplex 2507InconelMonelHastelloyTitanium

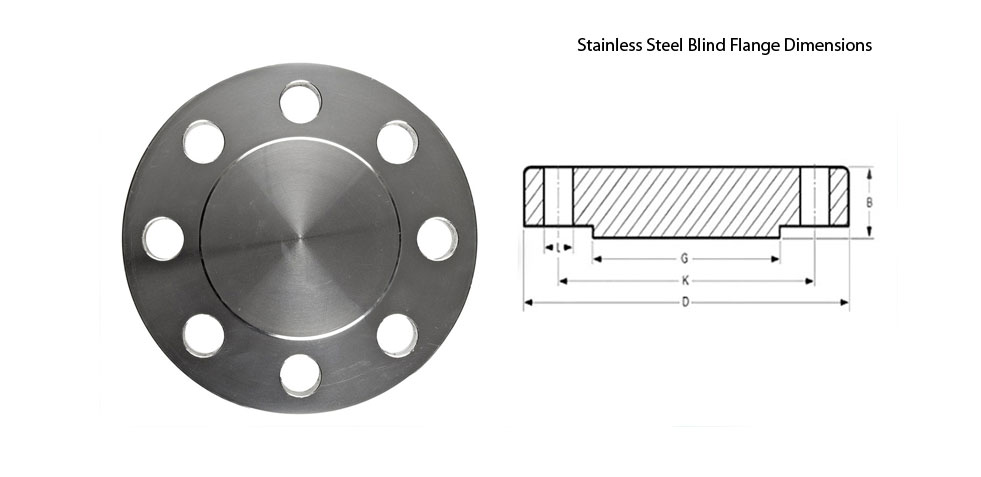

Dimensions Chart
Covers nominal size, outside diameter, bolt circle, hole quantity and flange thickness.
Class 150 Blind Flange Dimensions
| NPS (Normal Pipe Sizes) | "A" (O.D.) Outside Daimeter |
"B" (Thickness) |
"C" (RF Daimeter) |
"D" (B.C.D.) |
# Bolt Holes |
Daimeter of Bolt Holes |
Approx. Weight In Kg |
|---|---|---|---|---|---|---|---|
| 1/2" | 3-1/2 | 7/16 | 1-3/8 | 2-3/8 | 4 | 5/8 | 2 |
| 3/4" | 3-7/8 | 1/2 | 1-11/16 | 2-3/4 | 4 | 5/8 | 2 |
| 1" | 4-1/4 | 9/16 | 2 | 3-1/8 | 4 | 5/8 | 2 |
| 1-1/4" | 4-5/8 | 5/8 | 2-1/2 | 3-1/2 | 4 | 5/8 | 3 |
| 1-1/2" | 5 | 11/16 | 2-7/8 | 3-7/8 | 4 | 5/8 | 3 |
| 2" | 6 | 3/4 | 3-5/8 | 4-3/4 | 4 | 3/4 | 4 |
| 2-1/2" | 7 | 7/8 | 4-1/8 | 5-1/2 | 4 | 3/4 | 7 |
| 3" | 7-1/2 | 15/16 | 5 | 6 | 4 | 3/4 | 9 |
| 3-1/2" | 8-1/2 | 15/16 | 5-1/2 | 7 | 8 | 3/4 | 13 |
| 4" | 9 | 15/16 | 6-3/16 | 7-1/2 | 8 | 3/4 | 17 |
| 5" | 10 | 15/16 | 7-5/16 | 8-1/2 | 8 | 7/8 | 20 |
| 6" | 11 | 1 | 8-1/2 | 9-1/2 | 8 | 7/8 | 27 |
| 8" | 13-1/2 | 1-1/8 | 10-5/8 | 11-3/4 | 8 | 7/8 | 47 |
| 10" | 16 | 1-3/16 | 12-3/4 | 14-1/4 | 12 | 1 | 67 |
| 12" | 19 | 1-1/4 | 15 | 17 | 12 | 1 | 123 |
| 14" | 21 | 1-3/8 | 16-1/4 | 18-3/4 | 12 | 1-1/8 | 139 |
| 16" | 23-1/2 | 1-7/16 | 18-1/2 | 21-1/4 | 16 | 1-1/8 | 187 |
| 18" | 25 | 1-9/16 | 21 | 22-3/4 | 16 | 1-1/4 | 217 |
| 20" | 27-1/2 | 1-11/16 | 23 | 25 | 20 | 1-1/4 | 283 |
| 24" | 32 | 1-7/8 | 27-1/4 | 29-1/2 | 20 | 1-3/8 | 415 |
Class 300 Blind Flange Dimensions
| NPS (Normal Pipe Size) | "A" (O.D.) Ouside Daimeter |
"B" (Thickness) |
"C" (RF Daimeter) |
"D" (B.C.D.) |
# Bolt Holes |
Daimeter of Bolt Holes |
Approx. Weight in Kilogram |
|---|---|---|---|---|---|---|---|
| 1/2" | 3-3/4 | 9/16 | 1-3/8 | 2-5/8 | 4 | 5/8 | 2 |
| 3/4" | 4-5/8 | 5/8 | 1-11/16 | 3-1/4 | 4 | 3/4 | 3 |
| 1" | 4-7/8 | 11/16 | 2 | 3-1/2 | 4 | 3/4 | 4 |
| 1-1/4" | 5-1/4 | 3/4 | 2-1/2 | 3-7/8 | 4 | 3/4 | 6 |
| 1-1/2" | 6-1/8 | 13/16 | 2-7/8 | 4-1/2 | 4 | 7/8 | 7 |
| 2" | 6-1/2 | 7/8 | 3-5/8 | 5 | 8 | 3/4 | 8 |
| 2-1/2" | 7-1/2 | 1 | 4-1/8 | 5-7/8 | 8 | 7/8 | 12 |
| 3" | 8-1/4 | 1-1/8 | 5 | 6-5/8 | 8 | 7/8 | 16 |
| 3-1/2" | 9 | 1-3/16 | 5-1/2 | 7-1/4 | 8 | 7/8 | 21 |
| 4" | 10 | 1-1/4 | 6-3/16 | 7-7/8 | 8 | 7/8 | 28 |
| 5" | 11 | 1-3/8 | 7-5/16 | 9-1/4 | 8 | 7/8 | 37 |
| 6" | 12-1/2 | 1-7/16 | 8-1/2 | 10-5/8 | 12 | 7/8 | 48 |
| 8" | 15 | 1-5/8 | 10-5/8 | 13 | 12 | 1 | 79 |
| 10" | 17-1/2 | 1-7/8 | 12-3/4 | 15-1/4 | 16 | 1-1/8 | 122 |
| 12" | 20-1/2 | 2 | 15 | 17-3/4 | 16 | 1-1/4 | 183 |
| 14" | 23 | 2-1/8 | 16-1/4 | 20-1/4 | 20 | 1-1/4 | 241 |
| 16" | 25-1/2 | 2-1/4 | 18-1/2 | 22-1/2 | 20 | 1-3/8 | 315 |
| 18" | 28 | 2-3/8 | 21 | 24-3/4 | 24 | 1-3/8 | 414 |
| 20" | 30-1/2 | 2-1/2 | 23 | 27 | 24 | 1-3/8 | 515 |
| 24" | 36 | 2-3/4 | 27-1/4 | 32 | 24 | 1-5/8 | 800 |
Class 400 Blind Flange Dimensions
| NPS (Normal Pipe Sizes) | Outside Daimeter | Circle Of Bolt (BC) | Raised Face (R) | Raised Face (RF) | Thickness Of Raised Face (T) | Thickness Of Flat Face (T2) | Hole Of Bolt (B) | Number of Bolt Holes | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 3.75" | 2.62" | 0.12" | .250" | 0.81" | 0.56" | 0.62" | 4 | ||||||
| 3/4" | 4.62" | 3.25" | 0.12" | .250" | 0.87" | 0.62" | 0.75" | 4 | ||||||
| 1" | 4.88" | 3.50" | 0.12" | .250" | 0.94" | 0.69" | 0.75" | 4 | ||||||
| 1-1/4" | 5.25" | 3.88" | 0.19" | .250" | 1.06" | 0.81" | 0.75" | 4 | ||||||
| 1-1/2" | 6.12" | 4.50" | 0.25" | .250" | 1.13" | 0.88" | 0.88" | 4 | ||||||
| 2" | 6.50" | 5.00" | 0.31" | .250" | 1.25" | 1.00" | 0.75" | 8 | ||||||
| 2-1/2" | 7.50" | 5.88" | 0.31" | .250" | 1.37" | 1.12" | 0.88" | 8 | ||||||
| 3" | 8.25" | 6.62" | 0.38" | .250" | 1.50" | 1.25" | 0.88" | 8 | ||||||
| 3-1/2" | 9.00" | 7.25" | 0.38" | .250" | 1.63" | 1.38" | 1.00" | 8 | ||||||
| 4" | 10.00" | 7.88" | 0.44" | .250" | 1.63" | 1.38" | 1.00" | 8 | ||||||
| 5" | 11.00" | 9.25" | 0.44" | .250" | 1.75" | 1.50" | 1.00" | 8 | ||||||
| 6" | 12.50" | 10.62" | 0.50" | .250" | 1.87" | 1.62" | 1.00" | 12 | ||||||
| 8" | 15.00" | 13.00" | 0.50" | .250" | 2.13" | 1.88" | 1.12" | 12 | ||||||
| 10" | 17.50" | 15.25" | 0.50" | .250" | 2.37" | 2.12" | 1.25" | 16 | ||||||
| 12" | 20.50" | 17.75" | 0.50" | .250" | 2.50" | 2.25" | 1.38" | 16 | ||||||
| 14" | 23.00" | 20.25" | 0.50" | .250" | 2.63" | 2.38" | 1.38" | 20 | ||||||
| 16" | 25.50" | 22.50" | 0.50" | .250" | 2.75" | 2.50" | 1.50" | 20 | ||||||
| 18" | 28.00" | 24.75" | 0.50" | .250" | 2.87" | 2.62" | 1.50" | 24 | ||||||
| 20" | 30.50" | 27.00" | 0.50" | .250" | 3.00" | 2.75" | 1.62" | 24 | ||||||
| 22" | 33.00" | 29.25" | 0.50" | .250" | 3.13" | 2.88" | 1.75" | 24 | ||||||
| 24" | 36.00" | 32.00" | 0.50" | .250" | 3.25" | 3.00" | 1.88" | 24 |
Class 600 Blind Flange Dimensions
| ΓΈ | D | b | g | k | Holes | l | Kg. |
|---|---|---|---|---|---|---|---|
| 1/2" | 95,2 | 14,3 | 34,9 | 66,7 | 4 | 15,9 | 0,700 |
| 3/4" | 117,5 | 15,9 | 42,9 | 82,5 | 4 | 19,0 | 1,200 |
| 1" | 123,8 | 17,5 | 50,8 | 88,9 | 4 | 19,0 | 1,500 |
| 1 1/4" | 133,3 | 20,6 | 63,5 | 98,4 | 4 | 19,0 | 2,000 |
| 1 1/2" | 155,6 | 22,2 | 73,0 | 114,3 | 4 | 22,2 | 3,200 |
| 2" | 165,1 | 25,4 | 92,1 | 127,0 | 8 | 19,0 | 4,300 |
| 2 1/2" | 190,5 | 28,6 | 104,8 | 149,2 | 8 | 22,2 | 6,000 |
| 3" | 209,5 | 31,7 | 127,0 | 168,3 | 8 | 22,2 | 8,000 |
| 3 1/2" | 228,6 | 34,9 | 139,7 | 184,1 | 8 | 25,4 | 10,500 |
| 4" | 273,0 | 38,1 | 157,2 | 215,9 | 8 | 25,4 | 18,000 |
| 5" | 330,2 | 44,4 | 185,7 | 266,7 | 8 | 28,6 | 28,500 |
| 6" | 355,6 | 47,6 | 215,9 | 292,1 | 12 | 28,6 | 35,500 |
| 8" | 419,1 | 55,6 | 269,9 | 349,2 | 12 | 31,7 | 58,000 |
| 10" | 508,0 | 63,5 | 323,8 | 431,8 | 16 | 34,9 | 98,000 |
| 12" | 558,8 | 66,7 | 381,0 | 488,9 | 20 | 34,9 | 125,000 |
| 14" | 603,2 | 69,8 | 412,7 | 527,0 | 20 | 38,1 | 151,000 |
| 16" | 685,8 | 76,2 | 469,9 | 603,2 | 20 | 41,3 | 215,000 |
| 18" | 742,9 | 82,5 | 533,4 | 654,0 | 20 | 44,4 | 287,000 |
| 20" | 812,8 | 88,9 | 584,2 | 723,9 | 24 | 44,4 | 366,000 |
| 22" | 869,9 | 95,2 | 641,2 | 777,9 | 24 | 47,6 | 437,000 |
| 24" | 939,8 | 101,6 | 692,1 | 838,2 | 24 | 50,8 | 532,000 |
Class 900 Blind Flange Dimensions
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Circle Of Bolt (BC) | Raised Face (R) | Raised Face (RF) | Thickness Of Raised Face (T) | Thickness Of Flat Face (T2) | Hole Of Bolt (B) | Number of Bolt Holes |
|---|---|---|---|---|---|---|---|---|
| 3" | 9.50" | 7.50" | 5.00" | .250" | 1.75" | 1.50" | 1.00" | 8 |
| 4" | 11.50" | 9.25" | 6.19" | .250" | 2.00" | 1.75" | 1.25" | 8 |
| 5" | 13.75" | 11.00" | 7.31" | .250" | 3.25" | 3.00" | 1.38" | 8 |
| 6" | 15.00" | 12.50" | 8.50" | .250" | 2.44" | 2.19" | 1.25" | 12 |
| 8" | 18.50" | 15.50" | 10.63" | .250" | 2.75" | 2.50" | 1.50" | 12 |
| 10" | 21.50" | 18.50" | 12.75" | .250" | 3.00" | 2.75" | 1.50" | 16 |
| 12" | 24.00" | 21.00" | 15.00" | .250" | 3.38" | 3.13" | 1.50" | 20 |
| 14" | 25.25" | 22.00" | 16.25" | .250" | 3.63" | 3.38" | 1.63" | 20 |
| 16" | 27.75" | 24.25" | 18.50" | .250" | 3.75" | 3.50" | 1.75" | 20 |
| 18" | 31.00" | 27.00" | 21.00" | .250" | 4.25" | 4.00" | 2.00" | 20 |
| 20" | 33.75" | 29.50" | 23.00" | .250" | 4.50" | 4.25" | 2.13" | 20 |
| 24" | 41.00" | 35.50" | 27.25" | .250" | 5.75" | 5.50" | 2.63" | 20 |
Class 1500 Blind Flange Dimensions
| NPS | Outside Daimeter Flange | Thickness Of Flange Minimum | Daimeter of Hub | Daimeter of Bolt Circle | Daimeter of Bolt Holes | Number of Bolts | Daimeter of Bolts(inches) | Approx. Weight in kilogram | ||
|---|---|---|---|---|---|---|---|---|---|---|
| inches | dn | O | C | X | BC | BH | BN | BD | KG/PCS | LB/PCS |
| 1/2 | 15 | 120.7 | 22.4 | 38.1 | 82.6 | 22.4 | 4 | 3/4 | 1.9 | 4.2 |
| 3/4 | 20 | 130 | 25.4 | 44.5 | 88.9 | 22.4 | 4 | 3/4 | 2.7 | 6 |
| 1 | 25 | 149.4 | 28.4 | 52.3 | 101.6 | 25.4 | 4 | 7/8 | 3.7 | 8.1 |
| 1-1/4 | 32 | 158.8 | 28.4 | 63.5 | 111.3 | 25.4 | 4 | 7/8 | 4.3 | 9.5 |
| 1-1/2 | 40 | 177.8 | 31.8 | 69.9 | 124 | 28.4 | 4 | 1 | 5.9 | 13 |
| 2 | 50 | 215.9 | 38.1 | 104.6 | 165.1 | 25.4 | 8 | 7/8 | 11.3 | 24.9 |
| 2-1/2 | 65 | 244.3 | 41.1 | 124 | 190.5 | 28.4 | 8 | 1 | 16 | 35.2 |
| 3 | 80 | 266.7 | 47.8 | 133.4 | 190.5 | 25.4 | 8 | 7/8 | 19.5 | 43 |
| 4 | 100 | 311.2 | 53.8 | 162.1 | 235 | 31.8 | 8 | 1 1/8 | 33 | 72.8 |
| 5 | 125 | 374.7 | 73.2 | 196.9 | 279.4 | 35.1 | 8 | 1 1/4 | 60 | 132 |
| 6 | 150 | 393.7 | 82.6 | 228.6 | 317.5 | 31.8 | 12 | 1 1/8 | 75 | 165 |
| 8 | 200 | 482.6 | 91.9 | 292.1 | 393.7 | 38.1 | 12 | 1 3/8 | 125 | 275 |
| 10 | 250 | 584.2 | 108 | 368.3 | 469.9 | 38.1 | 16 | 1 3/8 | 215 | 474 |
| 12 | 300 | 673.1 | 124 | 450.9 | 533.4 | 38.1 | 20 | 1 3/8 | 316 | 697 |
| 14 | 350 | 749.3 | 133.4 | 495.3 | 558.8 | 41.1 | 20 | 1 1/2 | ||
| 16 | 400 | 825.5 | 146.1 | 552.5 | 616 | 44.5 | 20 | 1 5/8 | ||
| 18 | 450 | 914.4 | 162.1 | 596.9 | 685.8 | 50.8 | 20 | 1 7/8 | ||
| 20 | 500 | 984.3 | 177.8 | 641.4 | 749.3 | 53.8 | 20 | 2 | ||
| 24 | 600 | 1168.4 | 203.2 | 762 | 901.7 | 66.5 | 20 | 2 1/2 | ||
Class 2500 Blind Flange Dimensions
| NPS | Outside Daimeter Of Flange | Thickness Of Flange Minimum | Daimeter of Bolt Circle | Daimeter of Bolt Holes | Number of Bolts | Daimeter of Bolts (inches) | KG | LB | |
|---|---|---|---|---|---|---|---|---|---|
| inch | dn | O | C | BC | BH | BN | BD | ||
| 1/2 | 15 | 133.4 | 30.2 | 88.9 | 22.4 | 4 | 3/4 | 3 | 7 |
| 3/4 | 20 | 139.7 | 31.8 | 95.3 | 22.4 | 4 | 3/4 | 4.5 | 10 |
| 1 | 25 | 158.8 | 35.1 | 108 | 25.4 | 4 | 7/8 | 5 | 12 |
| 1-1/4 | 32 | 184.2 | 38.1 | 130 | 28.4 | 4 | 1 | 8 | 18 |
| 1-1/2 | 40 | 203.2 | 44.5 | 146.1 | 31.8 | 4 | 1 1/8 | 11 | 25 |
| 2 | 50 | 235 | 50.8 | 171.5 | 28.4 | 8 | 1 | 17 | 38 |
| 2-1/2 | 65 | 266.7 | 57.2 | 196.9 | 31.8 | 8 | 1 1/8 | 25 | 55 |
| 3 | 80 | 304.8 | 66.5 | 228.6 | 35.1 | 8 | 1 1/4 | 39 | 86 |
| 4 | 100 | 355.6 | 76.2 | 273.1 | 41.1 | 8 | 1 1/2 | 60 | 133 |
| 5 | 125 | 419.1 | 91.9 | 323.9 | 47.8 | 8 | 1 3/4 | 101 | 223 |
| 6 | 150 | 482.6 | 108 | 368.3 | 53.8 | 8 | 2 | 156 | 345 |
| 8 | 200 | 552.5 | 127 | 438.2 | 53.8 | 12 | 2 | 242 | 533 |
| 10 | 250 | 673.1 | 165.1 | 539.8 | 66.5 | 12 | 2 1/2 | 465 | 1023 |
| 12 | 300 | 762 | 184.2 | 619.3 | 73.2 | 12 | 2 3/4 | 665 | 1463 |
