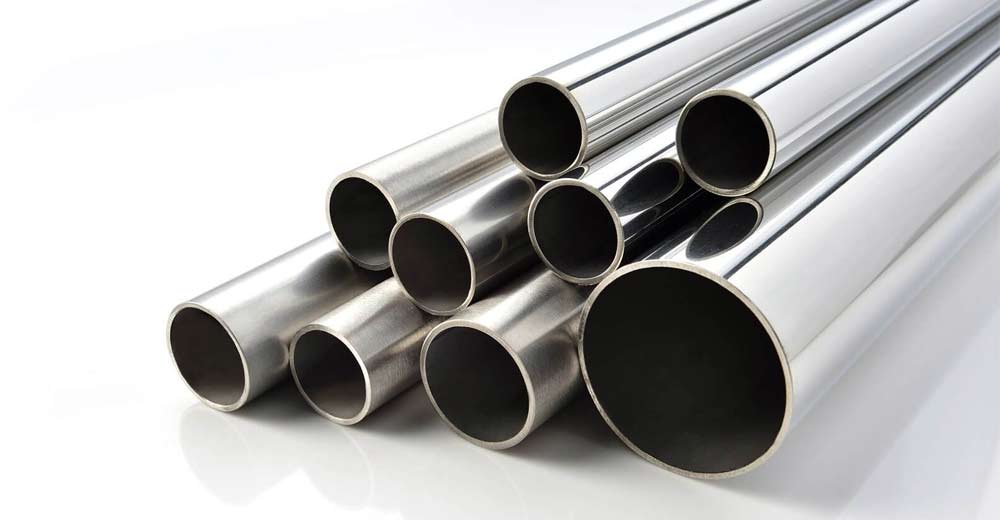

Pipes
Certified steel products, dependable supply and application-focused support for industrial buyers.
Seamless and welded pipes are supplied for process plants, heat exchangers, utility lines and structural service. Pipes are selected based on pressure, temperature, corrosion allowance, schedule and end-use application. We support project procurement with seamless, ERW, EFW, LSAW and SSAW pipes in multiple grades, schedules and end finishes including bevelled, plain end and coated options.
Size Range1/8 inch to 48 inch
Wall / Pressure ClassSch 5 to Sch
XXS
TypesSeamless, ERW, EFW, LSAW,
SSAW
StandardsASTM A312, A106, A53, API 5L,
EN
FinishAnnealed, Pickled, Beveled,
Coated
LengthSingle random, double random, cut
length
Materials Grades
Available in corrosion-resistant, high-temperature and pressure-grade materials for industrial service. Grade selection can be aligned with pressure, temperature, corrosion allowance and client specification.
Stainless Steel 304/304LStainless Steel 316/316LCarbon SteelAlloy
SteelDuplex 2205Super Duplex 2507InconelMonelHastelloyTitanium
Pipes Types

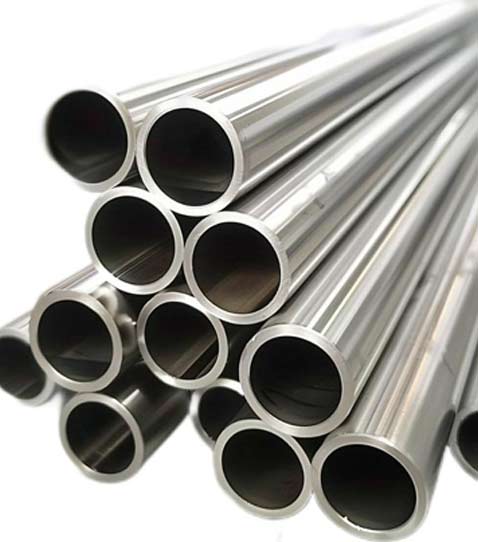

Seamless Pipes
Used for high-pressure and high-temperature service with uniform strength.

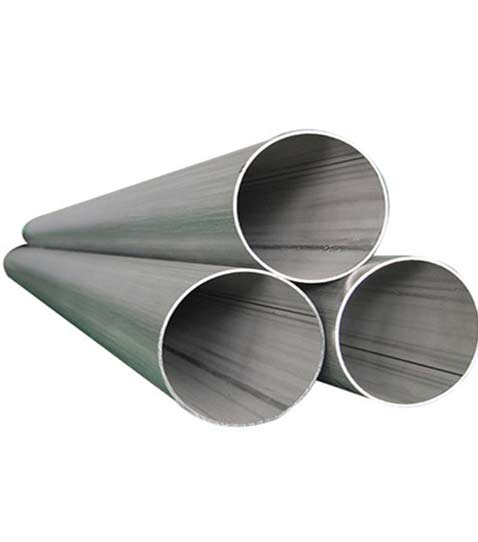

Welded Pipes
Economical choice for process, utility and structural piping lines.

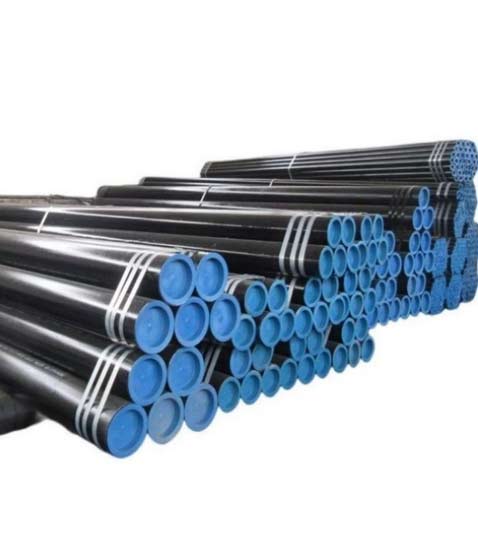

API & Line Pipes
Suitable for oil, gas, water and transmission pipeline requirements.
Dimensions Chart
Pipe charts include separate seamless and welded dimensions with OD, schedule wall thickness and approximate weight range.
Seamless Pipe Dimensions Chart
ANSI B36.10 / B36.19 style reference for common seamless pipe sizes.
| NPS | DN | OD (mm) | Sch 10S Wall | Sch 40S Wall | Sch 80S Wall | Approx Wt kg/m |
|---|---|---|---|---|---|---|
| 1/2 | 15 | 21.3 | 2.11 | 2.77 | 3.73 | 1.01 - 1.62 |
| 3/4 | 20 | 26.7 | 2.11 | 2.87 | 3.91 | 1.28 - 2.20 |
| 1 | 25 | 33.4 | 2.77 | 3.38 | 4.55 | 2.09 - 3.24 |
| 1-1/2 | 40 | 48.3 | 2.77 | 3.68 | 5.08 | 3.11 - 5.41 |
| 2 | 50 | 60.3 | 2.77 | 3.91 | 5.54 | 3.93 - 7.48 |
| 3 | 80 | 88.9 | 3.05 | 5.49 | 7.62 | 6.45 - 15.20 |
| 4 | 100 | 114.3 | 3.05 | 6.02 | 8.56 | 8.36 - 22.30 |
| 6 | 150 | 168.3 | 3.40 | 7.11 | 10.97 | 13.84 - 42.70 |
| 8 | 200 | 219.1 | 3.76 | 8.18 | 12.70 | 19.96 - 64.60 |
| 10 | 250 | 273.1 | 4.19 | 9.27 | 12.70 | 27.78 - 96.00 |
| 12 | 300 | 323.9 | 4.57 | 9.53 | 12.70 | 36.00 - 132.00 |
Welded Pipe Dimensions Chart
Welded pipe follows the same OD series; manufacturing tolerance and weld bead treatment depend on specification.
| NPS | DN | OD (mm) | Sch 10S Wall | Sch 40S Wall | Sch 80S Wall | Approx Wt kg/m |
|---|---|---|---|---|---|---|
| 1/2 | 15 | 21.3 | 2.11 | 2.77 | 3.73 | 1.01 - 1.62 |
| 3/4 | 20 | 26.7 | 2.11 | 2.87 | 3.91 | 1.28 - 2.20 |
| 1 | 25 | 33.4 | 2.77 | 3.38 | 4.55 | 2.09 - 3.24 |
| 1-1/2 | 40 | 48.3 | 2.77 | 3.68 | 5.08 | 3.11 - 5.41 |
| 2 | 50 | 60.3 | 2.77 | 3.91 | 5.54 | 3.93 - 7.48 |
| 3 | 80 | 88.9 | 3.05 | 5.49 | 7.62 | 6.45 - 15.20 |
| 4 | 100 | 114.3 | 3.05 | 6.02 | 8.56 | 8.36 - 22.30 |
| 6 | 150 | 168.3 | 3.40 | 7.11 | 10.97 | 13.84 - 42.70 |
| 8 | 200 | 219.1 | 3.76 | 8.18 | 12.70 | 19.96 - 64.60 |
| 10 | 250 | 273.1 | 4.19 | 9.27 | 12.70 | 27.78 - 96.00 |
| 12 | 300 | 323.9 | 4.57 | 9.53 | 12.70 | 36.00 - 132.00 |
Applications
Oil & Gas
Reliable performance for demanding fabrication, maintenance and process piping needs.
Petrochemical
Reliable performance for demanding fabrication, maintenance and process piping needs.
Power & Energy
Reliable performance for demanding fabrication, maintenance and process piping needs.
Marine
Reliable performance for demanding fabrication, maintenance and process piping needs.
Chemical
Reliable performance for demanding fabrication, maintenance and process piping needs.
Construction
Reliable performance for demanding fabrication, maintenance and process piping needs.
