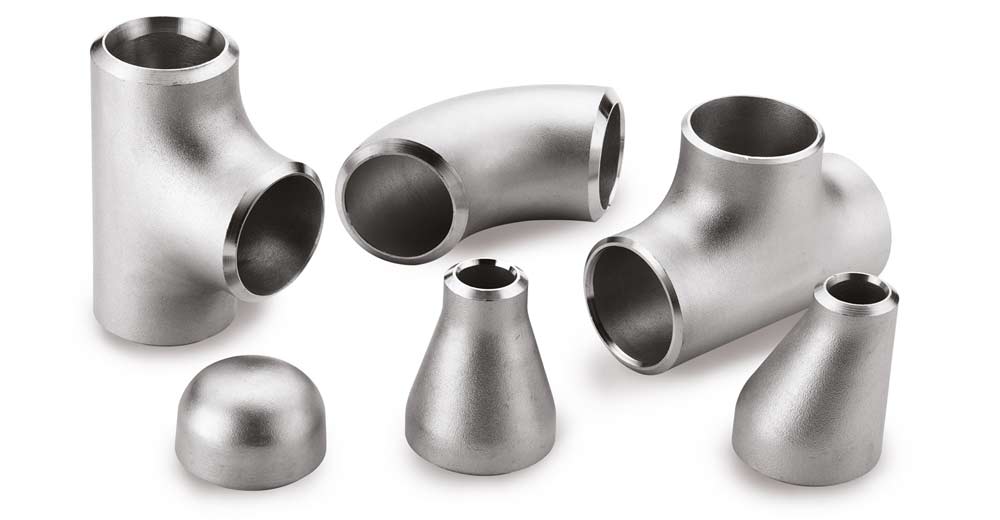

Buttweld Fittings
Certified steel products, dependable supply and application-focused support for industrial buyers.
Buttweld fittings support smooth directional change, branch connections and pipe size transitions with full-penetration welded strength. They are preferred in pressure piping because the welded joint becomes part of the line and allows smooth flow with lower turbulence. Kwality Steel (India) supplies elbows, tees, reducers, caps and stub ends in stainless steel, carbon steel, alloy steel and nickel alloy grades with dimensional accuracy and project-ready packing.
Size Range1/2 inch to 48 inch
Wall / Pressure ClassSch 5S to
XXS
TypesElbow, Tee, Reducer, Cap, Stub End,
Cross
StandardsASME B16.9, MSS SP-43, EN
10253
FinishPickled, Polished, Black,
Galvanized
LengthShort/long radius
Materials Grades
Available in corrosion-resistant, high-temperature and pressure-grade materials for industrial service. Grade selection can be aligned with pressure, temperature, corrosion allowance and client specification.
Stainless Steel 304/304LStainless Steel 316/316LCarbon SteelAlloy
SteelDuplex 2205Super Duplex 2507InconelMonelHastelloyTitanium
Buttweld Fittings Types
Elbow
Used for 45 degree, 90 degree and 180 degree directional changes in piping layouts.
Reducer
Connects larger and smaller pipe sizes with concentric or eccentric transition.
Tee
Creates branch connections for equal flow distribution or reducing branch lines.
Dimensions Chart
Buttweld fitting dimensions below cover the requested elbow, reducer and tee reference points as per common ASME B16.9 practice.
Buttweld Elbow Dimensions Chart
Includes 45 Degree, 90 Degree and 180 Degree long radius elbow center dimensions.
| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) |
Center to Face (inch) |
Center to Face (inch) |
Radius (inch) |
Center to Center (inch) |
Back to face (inch) |
|
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Buttweld Pipe Fittings Dimension Chart
| NPS | O.D. | Pipe End Caps | Straight Tee | Straight Cross | Long / Short Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inch.) | (millimeter) | (inch.) | Length (inch.) |
Center to End (inch.) |
Center to End (inch.) |
Lap Diameter (inch.) |
Long Length (inch.) |
Short Length (inch.) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Welded Fittings Dimensions Chart
| (Normal Pipe Size) NPS | (Outside Diameter) O.D. | Ave. (Inside Daimeter) I.D. |
Minimum WALL |
Normal Weight Chart |
Maximum W.P. psi |
| 1/4" | .540 | .344 | .088 | .086 | 780 |
| 3/8" | .675 | .473 | .091 | .115 | 620 |
| 1/2" | .840 | .602 | .109 | .170 | 590 |
| 3/4" | 1.050 | .804 | .113 | .226 | 480 |
| 1" | 1.315 | 1.029 | .133 | .333 | 450 |
| *1-1/4" | 1.660 | 1.360 | .140 | .450 | 370 |
| *1-1/2" | 1.900 | 1.590 | .145 | .537 | 330 |
| *2" | 2.375 | 2.047 | .154 | .720 | 280 |
| 2-1/2" | 2.875 | 2.445 | .203 | 1.136 | 300 |
| *3" | 3.500 | 3.042 | .216 | 1.488 | 260 |
| 3-1/2" | 4.000 | 3.521 | .226 | 1.789 | 240 |
| *4" | 4.500 | 3.998 | .237 | 2.118 | 220 |
| 5" | 5.563 | 5.016 | .258 | 2.874 | 190 |
| *6" | 6.625 | 6.031 | .280 | 3.733 | 180 |
| *8" | 8.625 | 7.942 | .322 | 5.619 | 160 |
| *10" | 10.750 | 9.976 | .365 | 7.966 | 140 |
| *12" | 12.750 | 11.889 | .406 | 10.534 | 130 |
| *14" | 14.000 | 13.073 | .437 | 12.462 | 130 |
| *16" | 16.000 | 14.940 | .500 | 16.286 | 130 |
| *18" | 18.000 | 16.809 | .562 | 20.587 | 130 |
| *20" | 20.000 | 18.743 | .593 | 24.183 | 120 |
| *24" | 24.000 | 22.544 | .687 | 33.652 | 120 |
Seamless Fittings Dimensions Chart
| (Normal Pipe Size) NPS | (Outside Diameter) O.D. | Ave. (Inside Diameter) I.D. |
minimum WALL |
Normal Weight |
Maxium W.P. psi |
| 1/4" | .540 | .282 | .119 | .105 | 1130 |
| 3/8" | .675 | .403 | .126 | .146 | 920 |
| 1/2" | .840 | .526 | .147 | .213 | 850 |
| 3/4" | 1.050 | .722 | .154 | .289 | 690 |
| 1" | 1.315 | .936 | .179 | .424 | 630 |
| 1-1/4" | 1.660 | 1.255 | .191 | .586 | 520 |
| 1-1/2" | 1.900 | 1.476 | .200 | .711 | 470 |
| 2" | 2.375 | 1.913 | .218 | .984 | 400 |
| 2-1/2" | 2.875 | 2.290 | .276 | 1.500 | 420 |
| 3" | 3.500 | 2.864 | .300 | 2.010 | 370 |
| 3-1/2" | 4.000 | 3.326 | .318 | 2.452 | 350 |
| 4" | 4.500 | 3.786 | .337 | 2.938 | 320 |
| 5" | 5.563 | 4.768 | .375 | 4.078 | 290 |
| 6" | 6.625 | 5.709 | .432 | 5.610 | 280 |
| 8" | 8.625 | 7.565 | .500 | 8.522 | 250 |
| 10" | 10.750 | 9.493 | .593 | 12.635 | 230 |
| 12" | 12.750 | 11.294 | .687 | 17.384 | 230 |
| 14" | 14.000 | 12.410 | .750 | 20.852 | 220 |
| 16" | 16.000 | 14.213 | .843 | 26.810 | 220 |
| 18" | 18.000 | 16.014 | .937 | 33.544 | 220 |
| 20" | 20.000 | 17.814 | 1.031 | 41.047 | 220 |
| 24" | 24.000 | 21.418 | 1.218 | 58.233 | 210 |
Applications
Oil & Gas
Reliable performance for demanding fabrication, maintenance and process piping needs.
Petrochemical
Reliable performance for demanding fabrication, maintenance and process piping needs.
Power & Energy
Reliable performance for demanding fabrication, maintenance and process piping needs.
Marine
Reliable performance for demanding fabrication, maintenance and process piping needs.
Chemical
Reliable performance for demanding fabrication, maintenance and process piping needs.
Construction
Reliable performance for demanding fabrication, maintenance and process piping needs.
